Make a Bootable KNOPPIX USB Flash Drive

Easily make a bootable Live KNOPPIX USB flash drive using the Universal USB Installer. KNOPPIX is another popular free and Open Source Live Linux distribution. It was one of the earliest Live Linux distributions ever made. This Live distro is based on Debian GNU/Linux and utilizes a lightweight LXDE desktop environment.

Booting KNOPPIX Live from a USB Drive

Run Knoppix Live from a USB Flash Drive

What is KNOPPIX Linux?

KNOPPIX is a Debian based Linux distribution known for its focus on providing a complete, portable live Linux operating environment. Originally developed by Klaus Knopper, it was one of the earliest Linux distributions to popularize the concept of a live CD, allowing users to run a full Linux operating system from removable media without the need for installation on their computer's hard drive. Some of this distros main features include:

  • Linux Live Distribution: KNOPPIX was created to be used primarily as a live CD or live USB distribution. Enabling you to boot your computer directly from a Live ISO file stored on a DVD/CD disc or bootable USB drive.
  • Debian Based: This Live distribution is built on top of Debian Linux, one of the most respected and widely used Linux distributions. Utilizing Debian as it's base ensures it is a stable platform while providing compatibility and access to a vast repository of Debian software packages.
  • Automatic Hardware Detection: Known for its excellent hardware detection capabilities. It can often identify and configure various hardware components, including graphics cards, sound cards, and network adapters, without requiring manual configuration.
  • Use as a Portable Operating System: The KNOPPIX Live distro provides a complete Linux desktop environment that functions independent of any locally installed existing operating system. Most find it useful tool to use for system recovery, diagnostics, and testing.
  • KNOPPIX Persistence: Some versions support persistence, which allows you to save changes and data back to a bootable USB drive.
  • KDE/LXDE Desktop Environment: It uses either an LXDE or KDE desktop environment, providing a familiar user friendly interface. It also ships with a variety of useful applications such as WINE and Firefox.
  • Security and Privacy: It places an emphasis on security and privacy, and it includes tools for data recovery, disk cloning, and encryption.
  • Toram Boot Options: Offers a "toram" boot option that allows you to load the entire live system into RAM, providing faster performance after booting.

KNOPPIX Specifications

  • Distribution Home Page: Project Page
  • Lead Developer: Klaus Knopper
  • Persistent Feature: Yes (the older versions are)

Essentials to Run KNOPPIX Live from USB

  • USB flash thumb drive (SSD flash drive is recommended)
  • Windows PC (or Linux with WINE installed)
  • Knoppix Linux ISO
  • Universal USB Installer (Multiboot USB Boot Maker) or DD from Linux

How to Make a KNOPPIX Live USB from Windows

You can use the Universal USB Installer (UUI) to quickly make a KNOPPIX Live bootable USB drive from within Windows. Here's How:

  1. Download and run UUI - Universal USB Installer.
  2. Download KNOPPIX Live CD/DVD ISO file.
  3. (Step 1) Choose your USB drive from the dropdown, and check the box to prepare the device.
    (Step 2) Select "KNOPPIX" from the list of distributions.
    (Step 3) Browse to and select your ISO file, and then click Create.

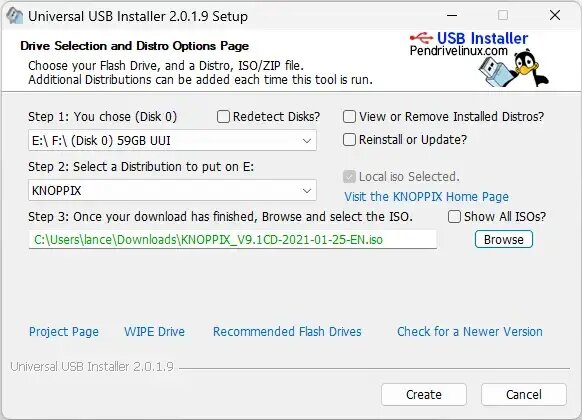

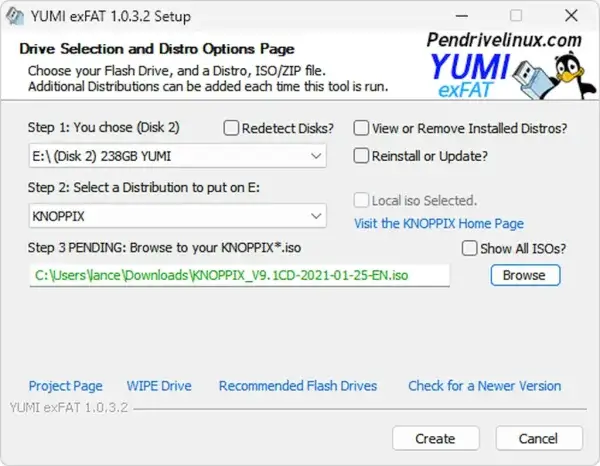

    KNOPPIX Live USB Maker

How to Create a KNOPPIX USB from Linux

To manually create a bootable KNOPPIX USB from within a running Linux operating environment, you can use Linux DD command. Here's How:

  1. Download KNOPPIX ISO file.
  2. Open Terminal (Ctrl + Alt + T).
  3. Identify the USB Drive: Insert your USB drive and then identify its device name using the lsblk or fdisk -l command. For example, your drive's device name might be /dev/sdX (where X represents a letter like b, c, d, etc.).
    sudo lsblk

    or

    sudo fdisk -l
  4. Unmount the USB Drive: Unmount the USB drive if it is mounted. Replace /dev/sdX1 with the appropriate partition signified by 1, 2, etc.
    sudo umount /dev/sdX1
  5. Change directory to where you downloaded the iso file. For example Downloads:
    cd ~/Downloads
  6. Making sure to replace sdX with your actual USB device name, type the following to dd copy the Knoppix ISO file to your USB drive:
    sudo dd if=knoppix*.iso of=/dev/sdX bs=4M status=progress oflag=sync

Setting your PC to Boot KNOPPIX from USB

To get your computer to boot KNOPPIX from USB, instead of the operating system stored on the internal hard drive:

  1. Reboot your PC.
  2. Then, during system post, use a Hotkey to Enter your BIOS or UEFI.
  3. Set your system BIOS or Boot Menu to boot from the USB drive.
  4. Finally, save your changes (F10) and proceed booting from your prepared bootable KNOPPIX USB.

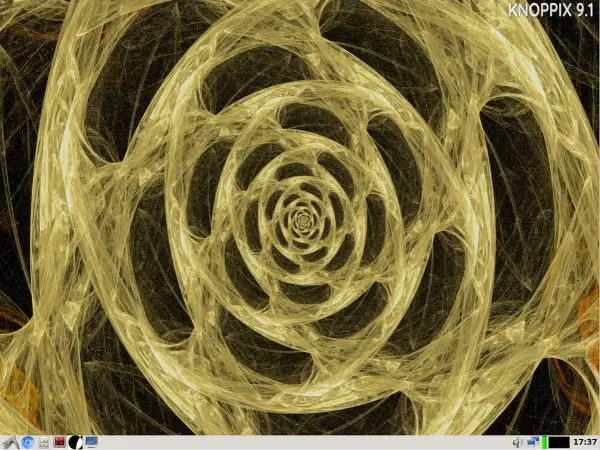

Upon startup, you should be presented with a UUI Multiboot USB Menu containing the option to run KNOPPIX from USB. With some older versions, you'll be able to follow the onscreen prompts during boot to make an encrypted persistent overlay. With KNOPPIX persistence enabled, you can persistently save  your changes back to the USB device during shutdown and then restore those changes during subsequent boots.

Frequently Asked Questions (FAQ)

What is KNOPPIX?
KNOPPIX is a Debian-based Linux distribution that can be run as a Live operating system from a CD, DVD, or USB drive. It allows you to boot into a fully functional Linux desktop without installing anything on your computer.
What is the purpose of using KNOPPIX?
KNOPPIX is used for various purposes, including system recovery, diagnostics, data recovery, and providing a portable operating system. Its excellent hardware detection makes it suitable for testing hardware compatibility and troubleshooting issues.
Can KNOPPIX save data or changes?
Yes, KNOPPIX supports persistence on USB drives. With persistence enabled, you can save changes, files, and configurations back to the USB device, allowing you to carry a personalized setup with you.
How can I create a bootable KNOPPIX USB drive?
You can use tools like Universal USB Installer on Windows or the 'dd' command on Linux to create a bootable KNOPPIX USB drive. Both methods are explained in detail in this post.
Does KNOPPIX work with modern hardware?
KNOPPIX is well-known for its automatic hardware detection capabilities and can often recognize and configure most modern hardware, including graphics cards, sound cards, and network adapters.
What desktop environments does KNOPPIX use?
KNOPPIX uses the lightweight LXDE desktop environment by default, with the option to use KDE. These environments are designed to be user-friendly and efficient.
What is the "toram" boot option in KNOPPIX?
The "toram" boot option loads the entire operating system into your computer's RAM, providing faster performance after booting. This is especially useful for systems with sufficient RAM.
Where can I download KNOPPIX?
You can download the KNOPPIX ISO file from the official mirrors, such as the one provided in this post: Download KNOPPIX.

Final Thoughts

KNOPPIX remains one of the most versatile and reliable Linux live distributions available today. Its ability to run directly from a USB drive or other removable media makes it a powerful tool for system recovery, diagnostics, and even everyday use. With features like persistence and "toram" boot options, it’s suitable for users who value portability and performance.

Whether you are a beginner experimenting with Linux for the first time or an experienced user looking for a robust portable operating system, running KNOPPIX from USB will have something fun to offer. It’s a testament to the innovation and practicality of open source software.
